ACH200
FINECM

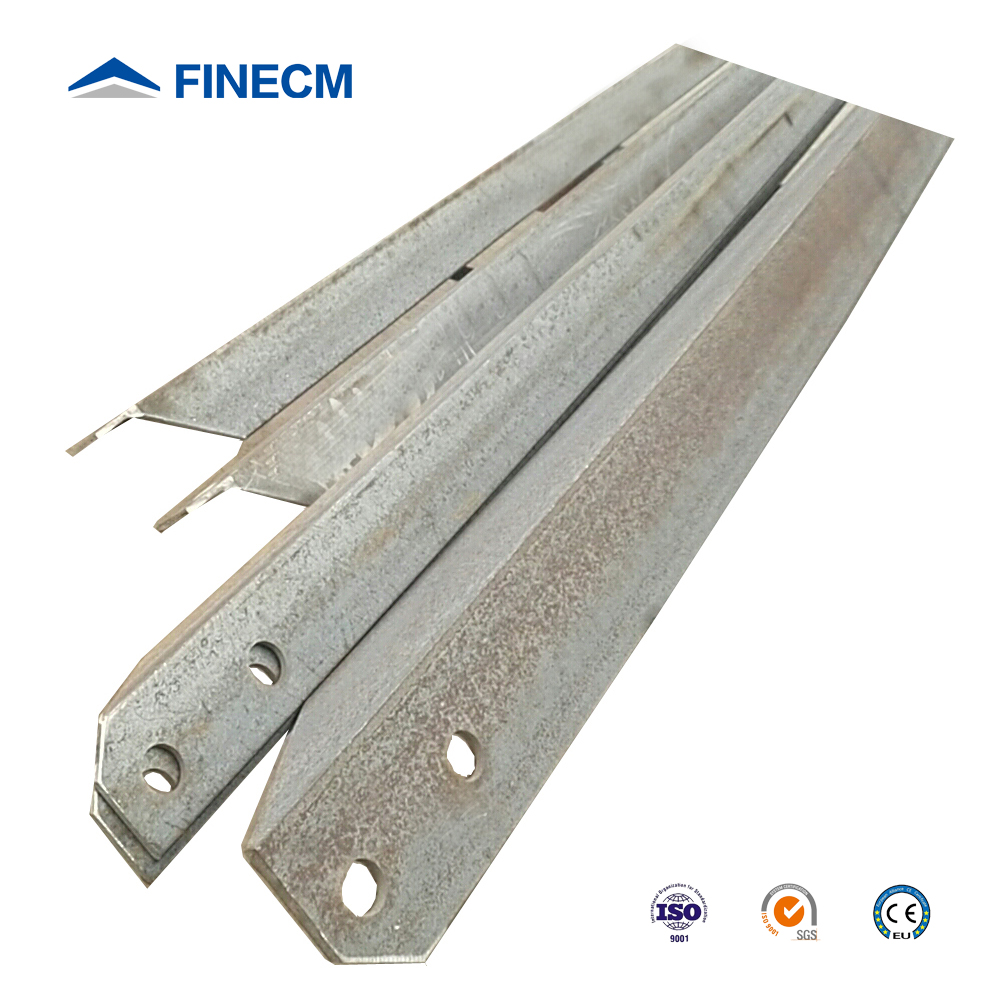

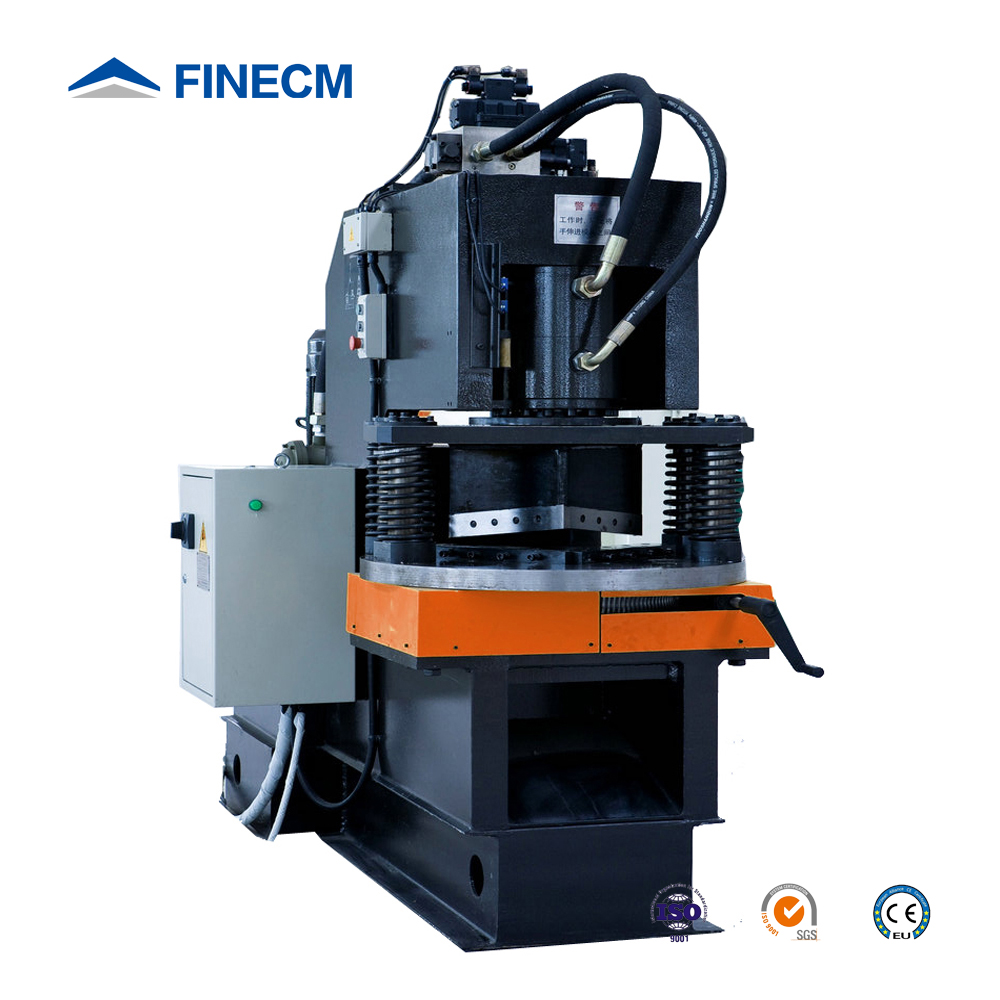

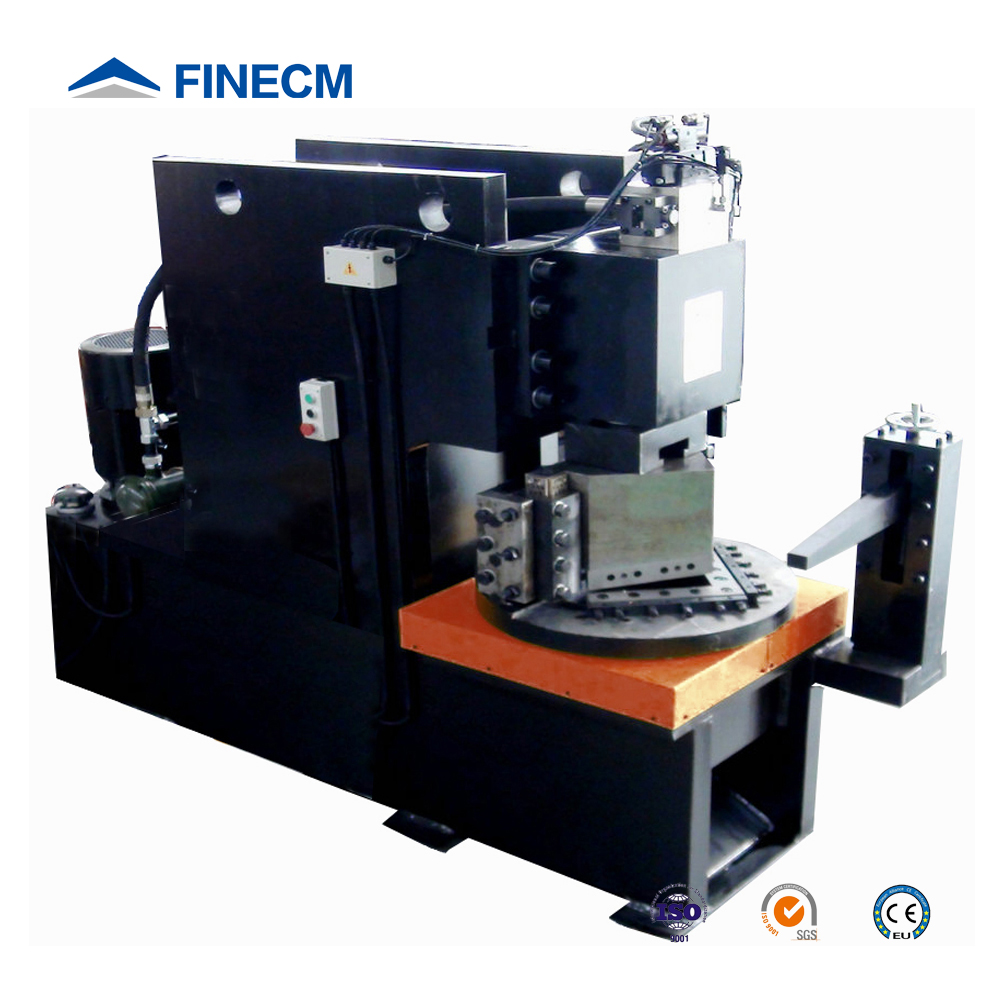

The ACH series Notching Machine is a simple hydraulic angle cutting machine for notching. It is a manual control machine with high efficiency, and it is wildly used in Steel Construction & Tower Industries.
Main Features:
1-Worktable-Rotatable Type & Cut Different Angle
2-Machine Body-C Type Reliable Structure & Good Rigidity

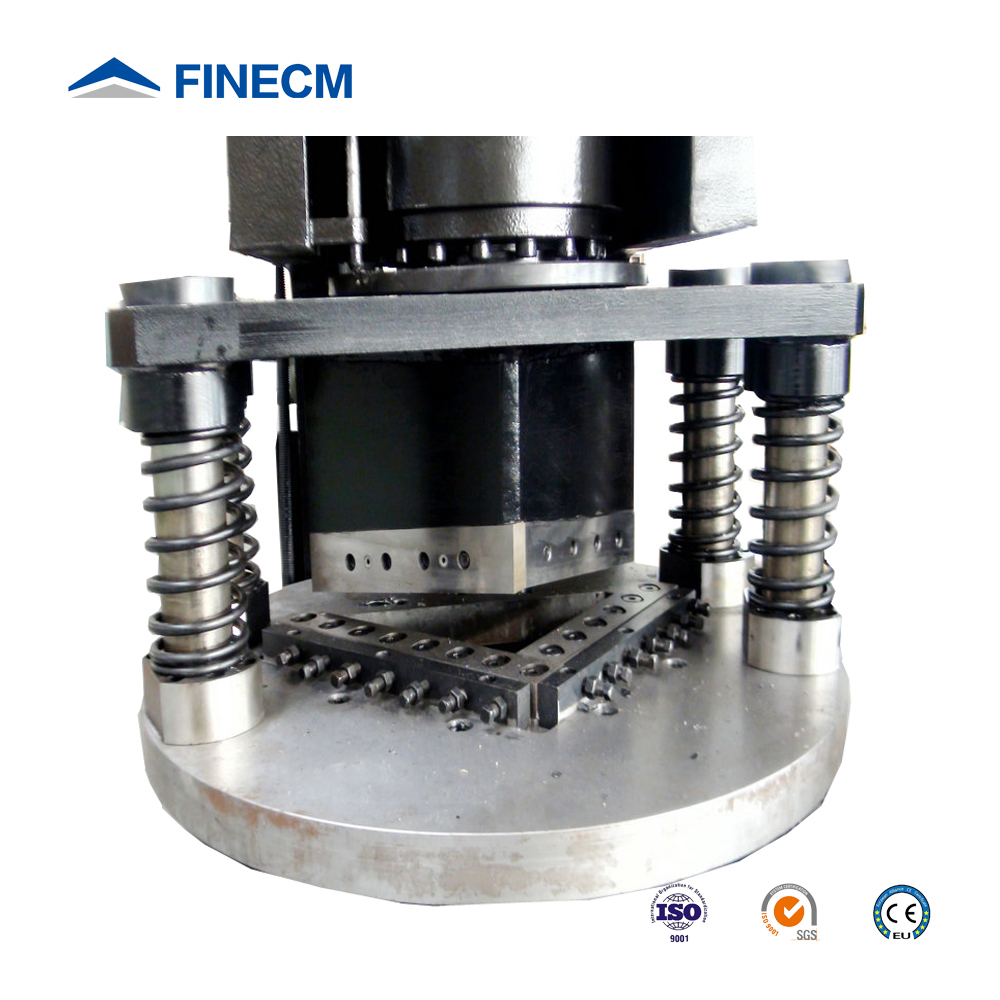

3-Notching Unit- Fast Notching Speed & Hydraulic Type
4-Electric System- Easy Operate & Foot Switch
5-Hydraulic Unit -Powerful Pressure & High Efficiency
6-Cooling System-Water/Air Cooling System
Machine Specification:
Model | ACH140 | ACH180 | ACH200 |
Max. Workpiece Size Single Blade Cutting | 140*140*16mm | 180*180*16mm | 200*200*20mm |
Max. Workpiece Size Right Angle Cutting | 100*100*12 | 180*180*14mm | 200*200*16mm |
Max. Cutting Length | 200mm | 300mm | 300mm |
Cutting Efficiency | 20/min | 12/min | 12/min |
Cutting Force | 560kN | 700 kN | 1000 kN |
Pressure of Hydraulic | 22Mpa | 22Mpa | 22Mpa |
Total Motor Power | 15KW | 15KW | 15KW |
