APM1412
FINECM
Usage:

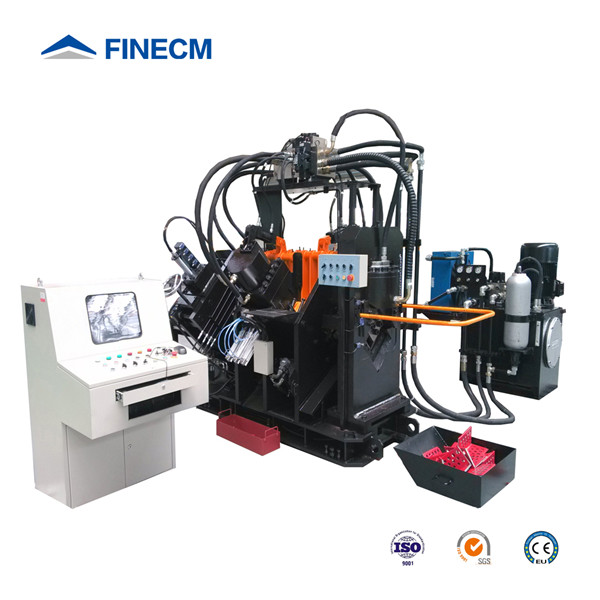

The APM series Angle Machine is a complete Processor Profiles for punching , marking and cutting Angle Profiles bars controlled by PLC and PC Programmable. The positioning, feeding of the machine are all driven by servo motors. It adopts Rack and Gear driving feeding by CNC carriage, high efficiency, and high precision; and it is wildly used in Steel Construction & Tower Industries.
Main Features:
1-Infeed conveyor & Feeding carriage-Fast, Reliable & Precision
2-Transverse conveyor & Auto Loading System-High Efficiency
3-Marking Unit-Four Group Marking Characters Boxes Auto Chosen

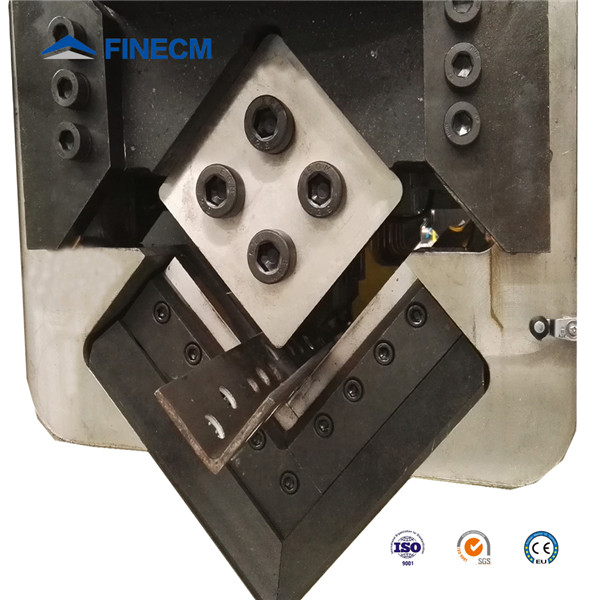

4-Punching Unit-Fast Punching Speed & Different Diameters Auto Chosen
5-Outfeed conveyor & Unloading System-Auto Unloading Workpiece
6-Electric System- Easy Programming & Operate, Read NC1, DXF DSTV CAM Files
7-Hydraulic Unit & Cooling System-Powerful Pressure & Air Cooling System
Main Specification:
1) Angle size: ∠40×3 ~ ∠140×12 (Q420)
2) Max. punching diameter: φ25.5mm (12mm thickness, Q420)
Nominal punching force: 950kN
3) Norminal marking force: 1030kN
4) Nominal Cutting force: 1800kN
5) Max. length of the raw angle: 12m
6) Quantity of punching head per side: 3
7) The quantity of punching row per side: arbitrariness
8) Quantity of character group: 4 group
9) Dimension of characters: 14×10mm
10) Cutting mode: Single-blade cutting
11) Quantity of axes: 3
12) Infeeding speed : 40m/min
13) Overall dimension: 26×7×2.2m(Only for reference)
14) The finished angle conveyor is rotated to one side by pneumatic power, the max. length of finished angle is 8 m.
15) There are four sets of transverse conveyor, infeed automatically and intermittently.
16) Type of programming: keyboard input, USB interface input, floppy disc input.
17) Layout: A type or B
18) Cooling system: Air cooling
