BL2532
FINECM

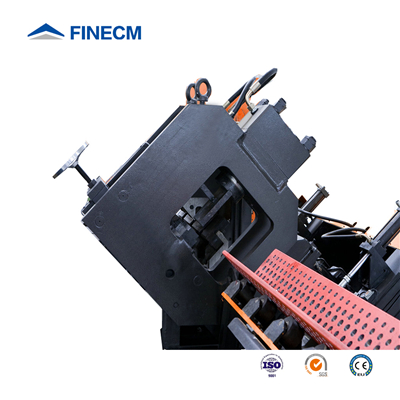

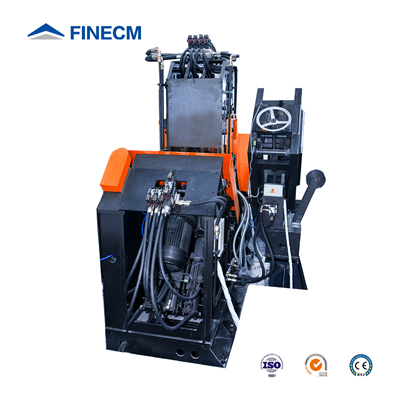

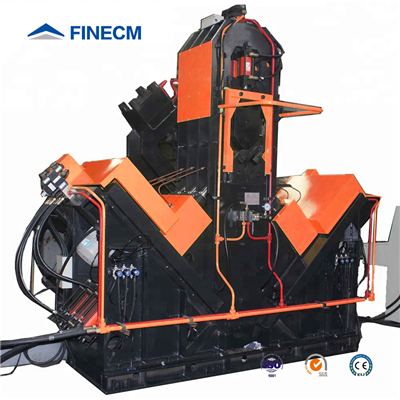

The BL2532 Angle Drilling Machine is a processing line for drilling and marking angle bars controlled by PLC and PC Programmable. It use twist drill, spindle rotation speed up to 560 rpm. The positioning, feeding of the machine are driven by servo motors. It adopts Rack and Gear driving feeding by CNC carriage, high efficiency, and high precision; and it is wildly used in Tower Industries.
Main Features:
1-Infeed conveyor & Feeding carriage-Fast, Reliable & Precision
2-Transverse conveyor & Auto Loading System-High Efficiency
3-Marking Unit-Four Group Marking Characters Boxes Auto Chosen
4-Drilling Unit-Twist Drill & Three Diameters Auto Chosen
5-Outfeed conveyor & Unloading System-Auto Unloading Workpiece
6-Hydraulic Unit & Cooling System-Powerful Pressure & Air Cooling System
Main Specification:
Model | BL2532 | BL3635 |
Min. Size/ mm | 140*140*10 | 140*140*10 |
Max. Size/mm | 250*250*32 | 360*360*35 |
Max Drilling Diameter | Φ40mm | Φ40mm |
Drilling Spindles Per Side | 3 | 3 |
Drilling Tools Per Side | 3 | 3 |
Max. Rotation Speed | 560 rpm | 560rpm |
Marking Force | 1000kN | 1200kN |
