BD SERIES CNC DRILLING MACHINE FOR BEAMS

BD SERIES CNC DRILLING MACHINE FOR BEAMS

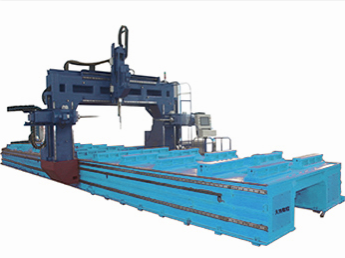

The BD Series CNC Drilling Machine is a gantry movable type drilling machine for large H-beams, Channels, Plates & Square Tubes controlled by PLC and PC Programmable. The positioning, feeding of the machine are all driven by servo motors. It adopts Rack and Gear driving for gantry moving, servo feeding for spindles, high efficiency and high precision; and it is wildly used in Steel Construction Industry.

Main Features

1-Gantry Movable Type-Fast, Reliable & Precision

2-Servo Feeding for Spindles-High Efficiency

3-Mainly for Large Beams Drilling

4-Machine Body-Strong Structure, High rigidity & High Stability

5-Electric System- Easy Programming & Operate, Read NC1, DXF DSTV CAM Files

6-Hydraulic Unit & Cooling System-Hydraulic Clamp for Beam & Water Cooling System/ Air Conditioner

Main Specifications
