PPD103B
FINECM
Usage:

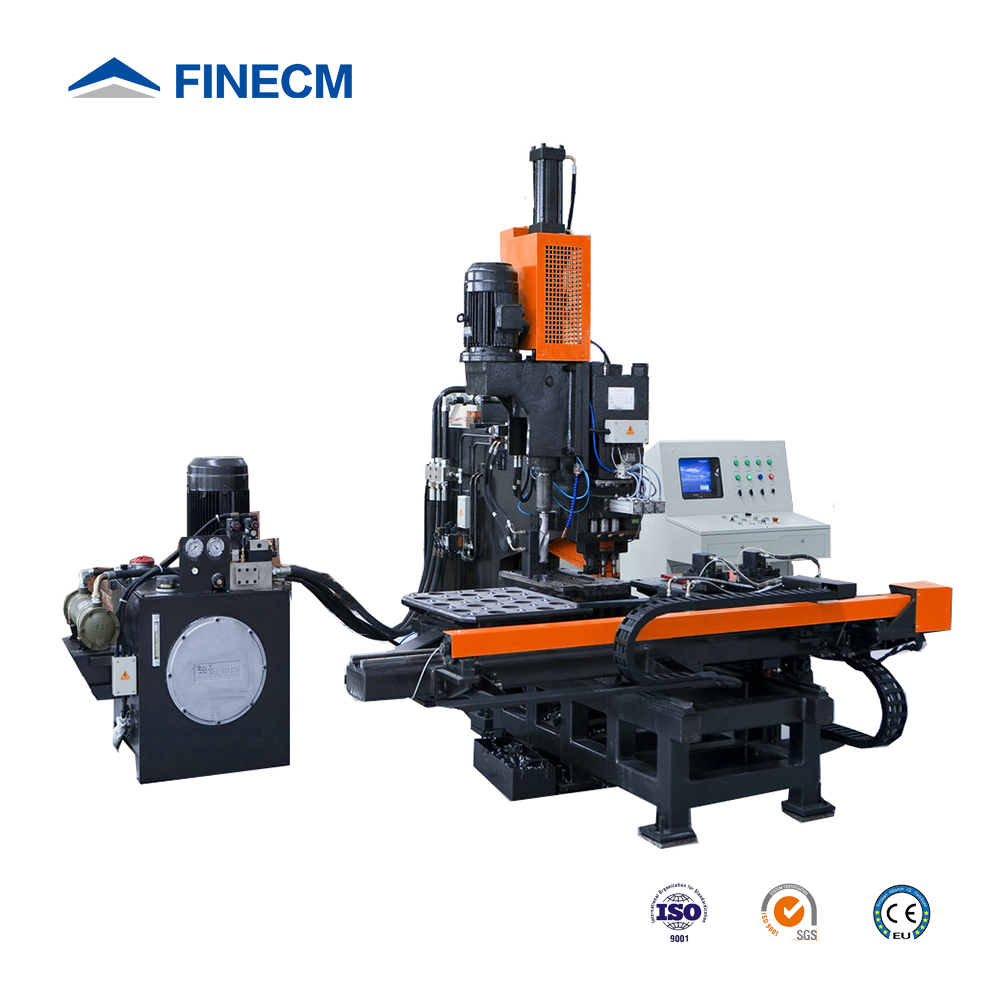

CNC HYDRAULIC PUNCHING & DRILLING MACHINE FOR PLATES
1-Worktable-Driven By 2 Servo Motors Via Linear Guide & Ball Screw
2-Machine Body-C Type Reliable Structure & Good Rigidity

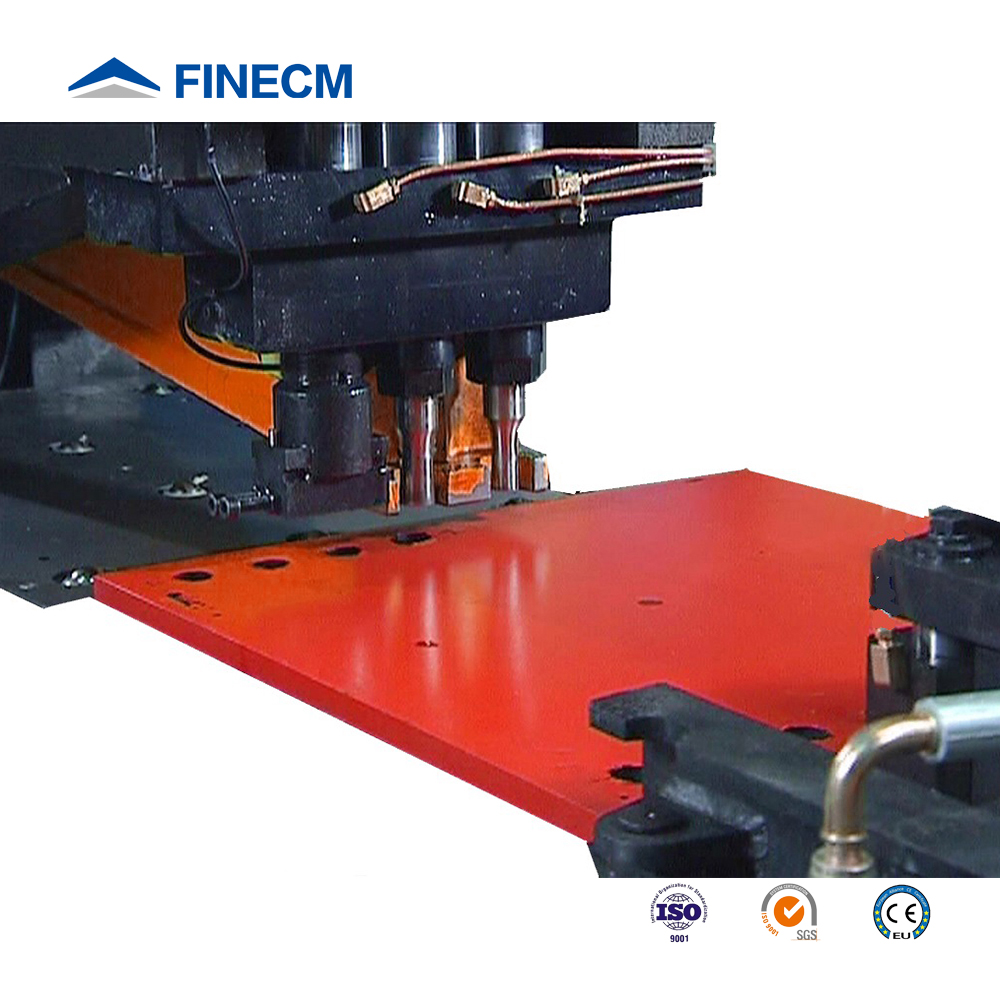

3-Punching Unit- Fast Punching Speed & 2 Different Diameter Auto Chosen
4-Marking Unit-One Group Marking Characters & Can be Changed to Punch
5-Option Drilling Unit-High Speed Spindle 3000RPM& Carbide Drill / Twist Drill 560RPM
6-Electric System- Easy Programming & Operate, Read NC1, DXF DSTV CAM Files
7-Hydraulic Unit & Cooling System-Powerful Pressure &Water/Air Cooling System

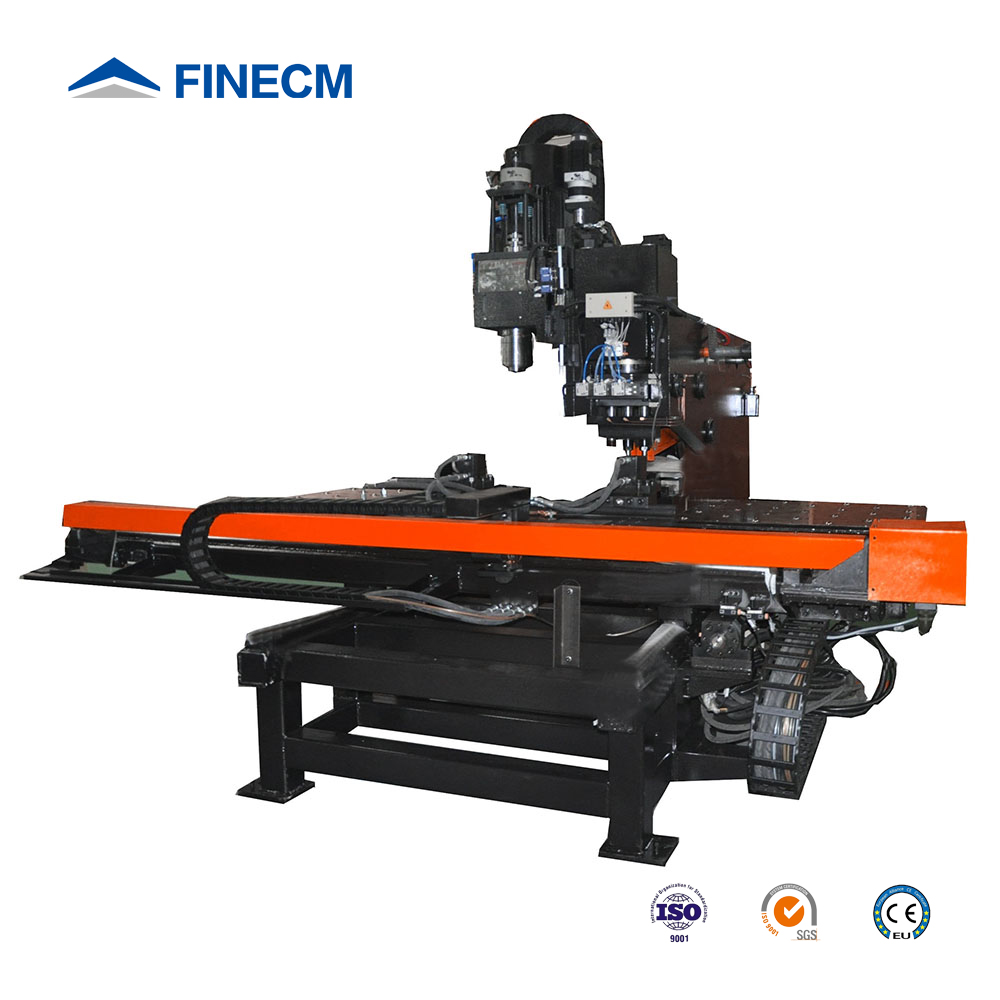

Model | PP103B | PPD103B | PP123 | PP153 | PPHD123 |
Max. Workpiece Size | 775*1500 | 775*1500 | 800*1500 | 775*1500 | 800*1500 |
Min./Max. Thickness | 5-25mm | 5-25mm | 5-25mm | 5-25mm | 5-40mm |
Max. Punching Diameter. | Φ26mm | Φ26mm | Φ30mm | Φ32mm | Φ26mm |
Max. Drilling Diameter | / | Φ50mm | / | / | Φ40mm |
Max. Rotation Speed | / | 560rpm | / | / | 3000rpm |
Punching Force | 1000kN | 1000 kN | 1200 kN | 1500 kN | 1200 kN |
Marking Characters | 10 | 10 | 16 | 10 | 16 |
