SWZ1000C
FINECM
Usage

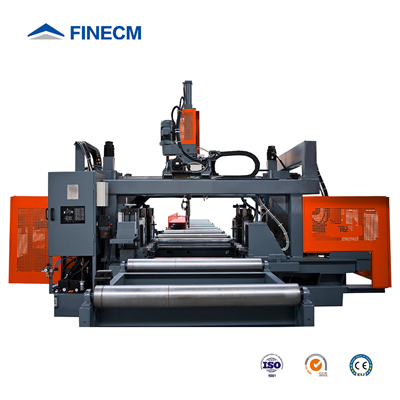

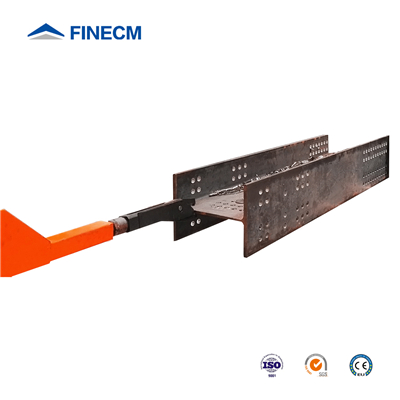

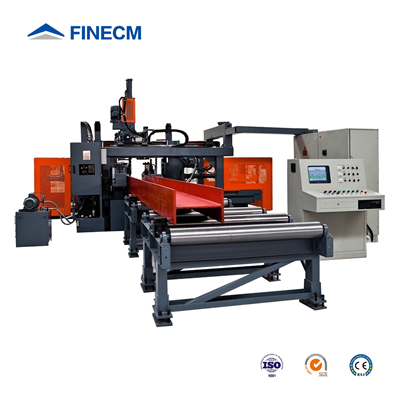

The SWZ1000C CNC Drilling Machine is a machine for drilling (Twist Drill) and marking(Option) on H-beams, Channels & Square Tubes controlled by PLC and PC Programmable. The positioning of the drilling spindles are all driven by servo motors. It adopts Rack and Gear driving feeding by CNC carriage, high efficiency and high precision; and it is wildly used in Steel Construction Industry.
SWZ SERIES CNC DRILLING MACHINE FOR BEAMS

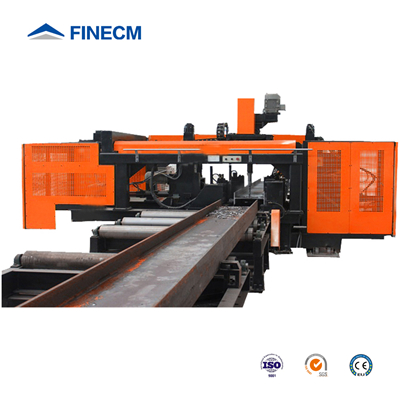

1-Infeed conveyor & Feeding Carriage-Fast, Reliable & Precision
2-Option of Transverse conveyor & Loading System-High Efficiency
3-Option of Disk Marking Unit-38 Marking Characters Auto Chosen
4-Drilling Unit-Each Spindle Movable Freely On X Axis Within 520mm
5-Machine Body-Strong Structure, High rigidity & High Stability
6-Electric System- Easy Programming & Operate, Read NC1, DXF DSTV CAM Files
7-Hydraulic Unit & Cooling System-Hydraulic Clamp for Beam& Air Cooling System/ Air Conditioner.
Model | SWZ700C | SWZ1000C | SWZ1000A | SWZ1250C | SWZ1250B |
Min. Size/ mm | 150-700mm | 150-1000mm | 150-1250mm | 150-1250mm | 150-1250mm |
Max. Size/mm | 75-400mm | 75-500mm | 75-600mm | 75-600mm | 75-600mm |
Max. Drilling Diameter | Ф33.5 | Ф33.5 | Ф33.5 | Ф33.5 | Ф33.5 |
Max. Rotation Speed | 560rpm | 560rpm | 560rpm | 560rpm | 560rpm |
Spindle Power | 4KW | 4KW | 4KW | 4KW | 4KW |
Control System | CNC | CNC | CNC | PLC | PLC |
Feeding Type | Carriage | Carriage | Roller | Carriage | Roller |
