PHD SERIES
FINECM
Usage

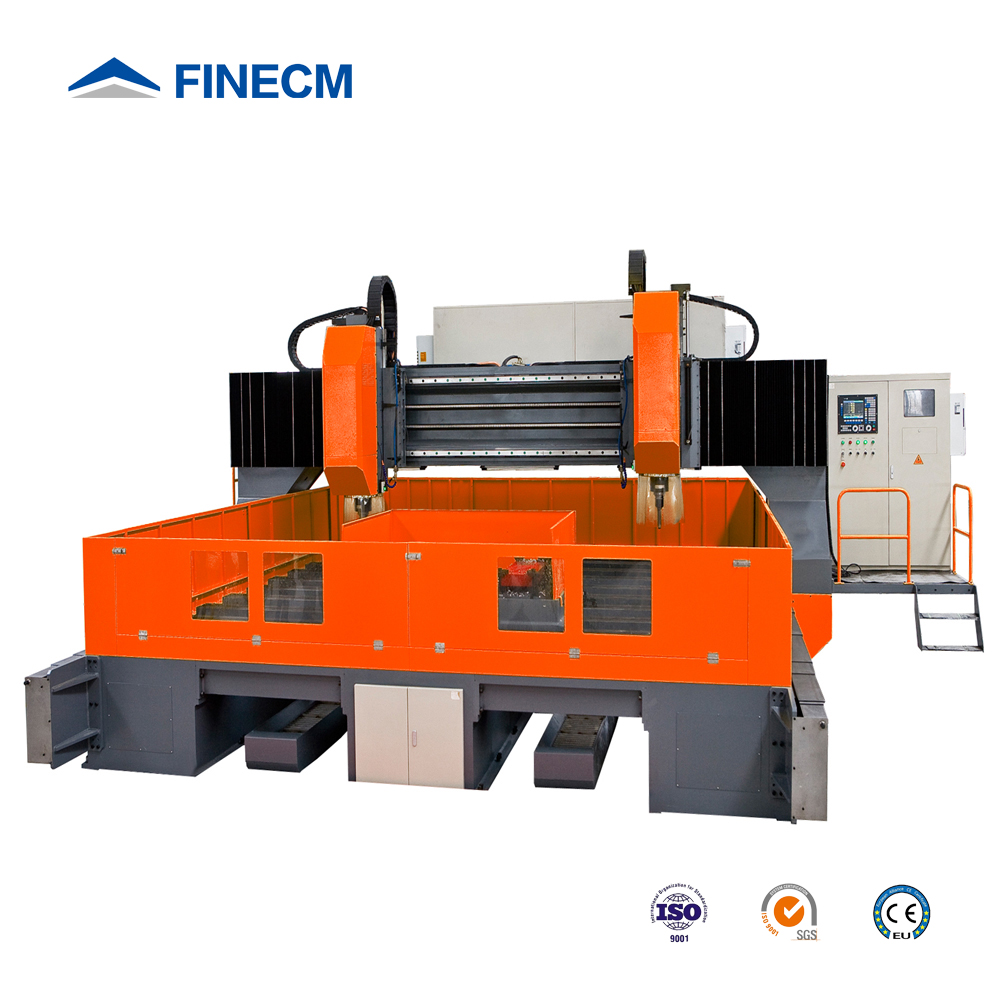

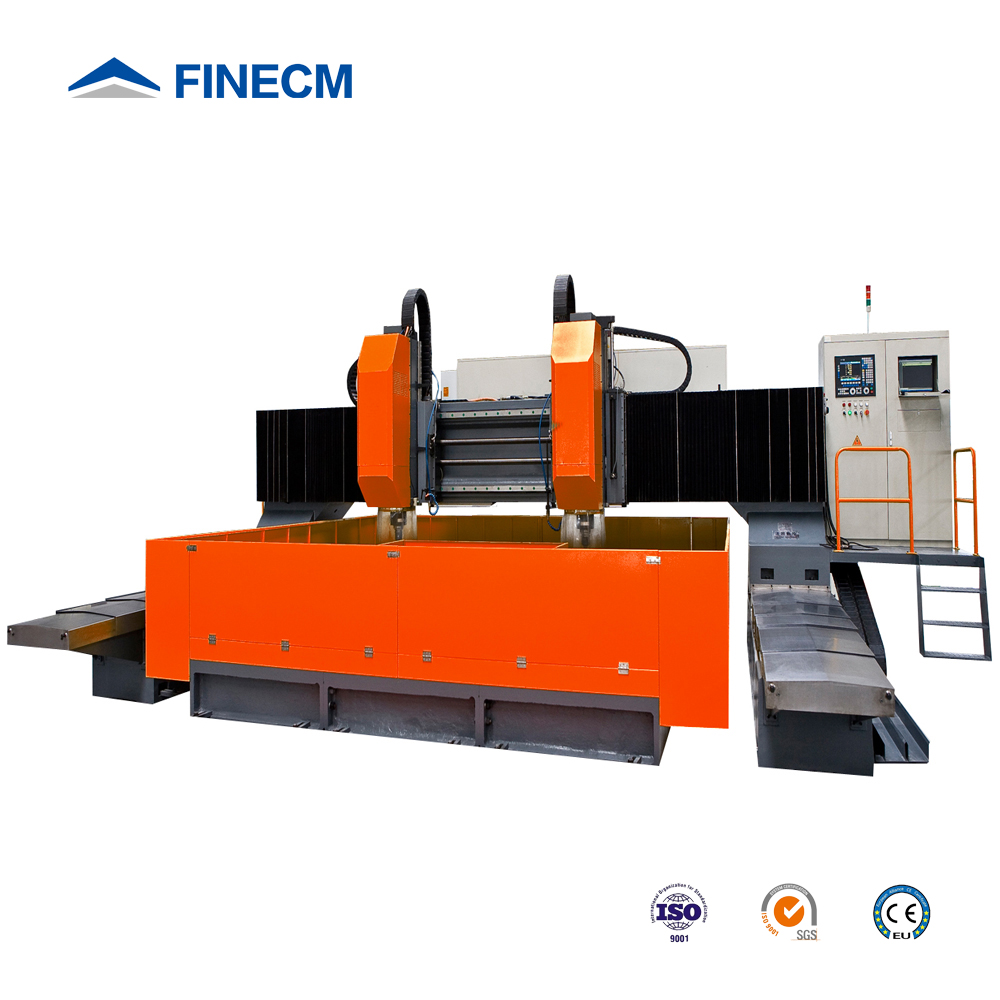

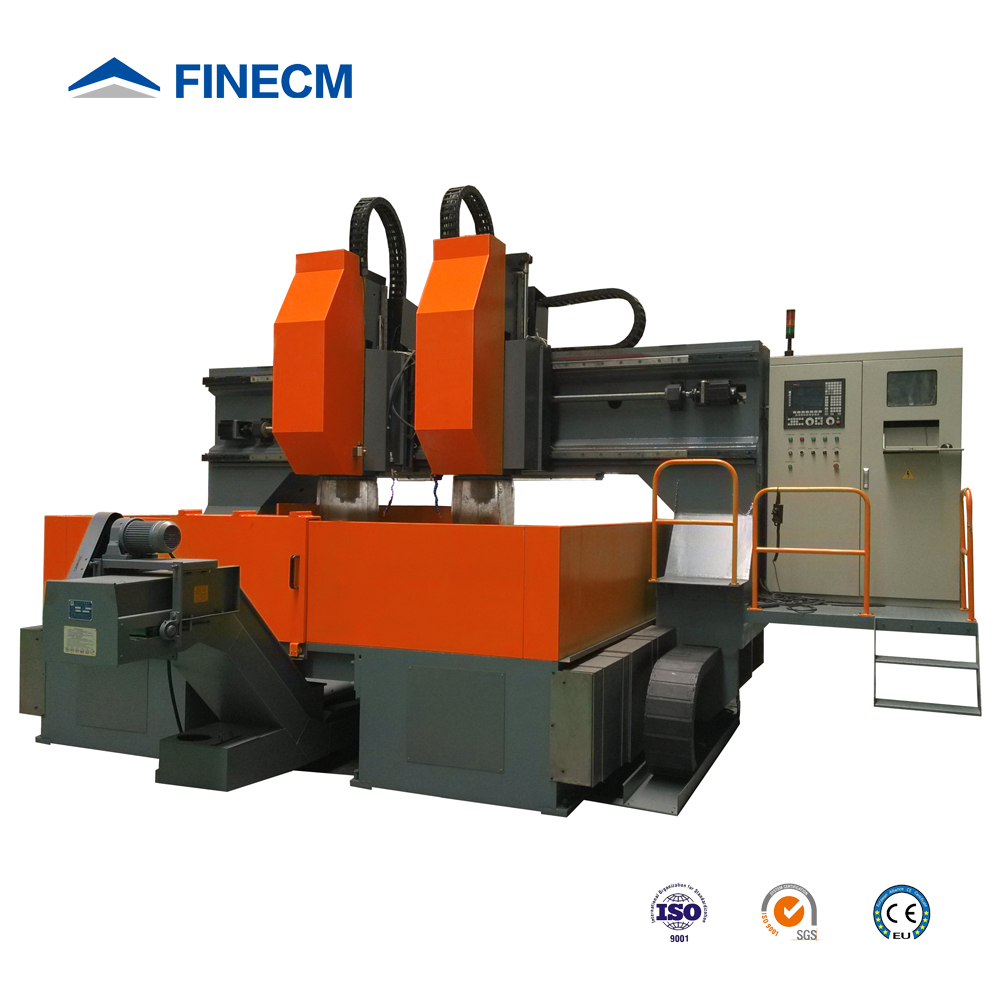

The PHD Series CNC Drilling Machine is a high speed drilling machine (Carbide Drill) for Tube Sheets, Flanges & Steel Plates, controlled by CNC and PC Programmable. The positioning, feeding of the machine are all driven by servo motors, high efficiency, and high precision; and it is wildly used in Heat Exchanger Industry.
Main Features
1-Machine Body- Welded by iron, Strong Structure, High rigidity & High Stability
2-Worktable- With T-slot for clamping the tube sheet or flange
3-Edge Finder-Equip hand wheel and edge finder to find the position of workpiece

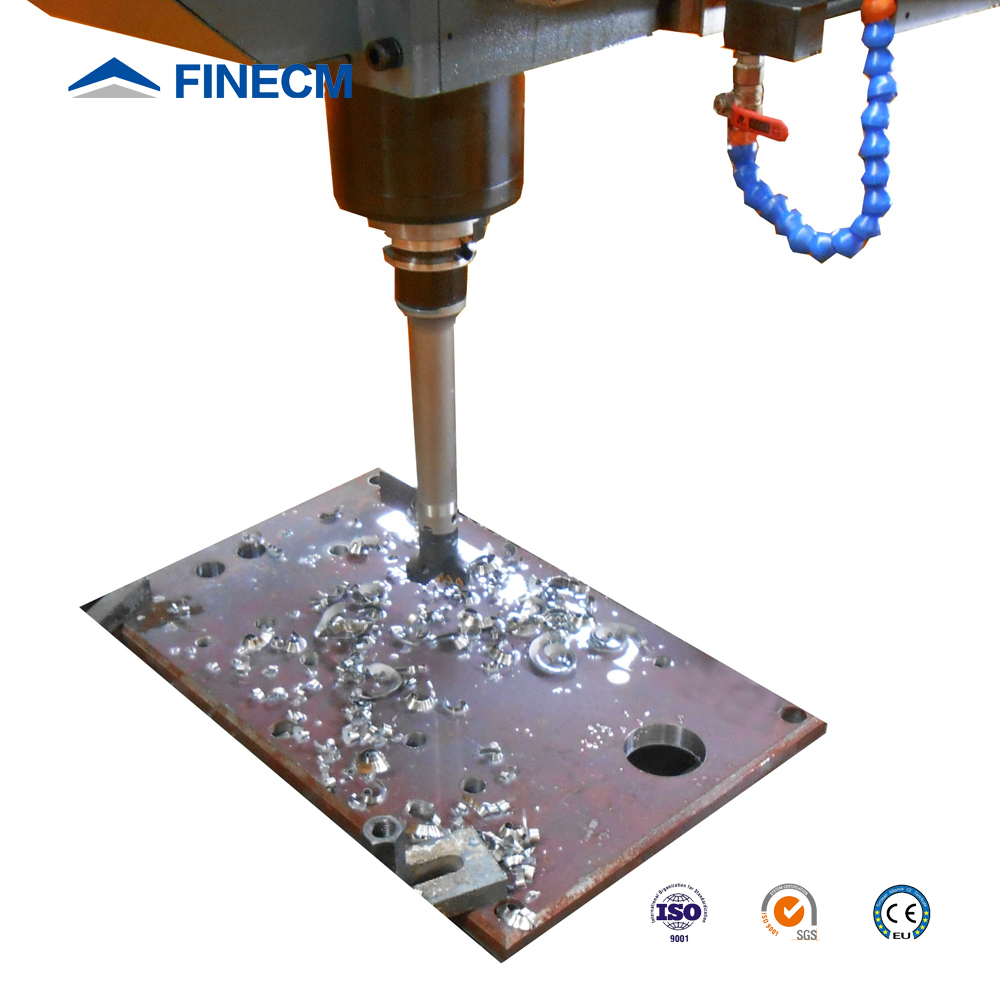

4-Drilling Unit-Precision Spindle, High Speed, Carbide Drill, Inner Cooling
5-Lubrication System-Equip auto lubrication device for linear guide & ball screw
6-Electric System- CNC，Easy Programming & Operate, Read AUTOCAD Files
Main Specifications
PHD2020 | PHD3030 | PHD4040/2 | Max. Size/ mm | 3000*2000 | 3000*3000 | 5000*5000 |
200mm | 200mm | 200mm | Max. Drilling Dia | Ф40 | Ф40 | Ф40 |
1 | 1 | 2 | Max. Rotation Spd | 2000rpm | 2400rpm | 2400rpm |
22KW | 22KW | 22KW | CNC Axis | 3 | 6 | 6 |
