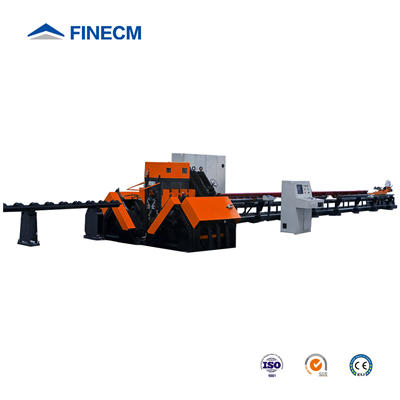

ADM2532 CNC HIGH SPEED DRILLING AND MARKING MACHINE FOR ANGLES

Usage:

The ADM2532 Angle Drilling Machine is a processing line for drilling and marking angle bars controlled by PLC and PC Programmable. It use carbide drill, spindle rotation speed up to 6000 rpm. The positioning, feeding of the machine are driven by servo motors. It adopts Rack and Gear driving feeding by CNC carriage, high efficiency, and high precision; and it is wildly used in Tower Industries

Main Features:

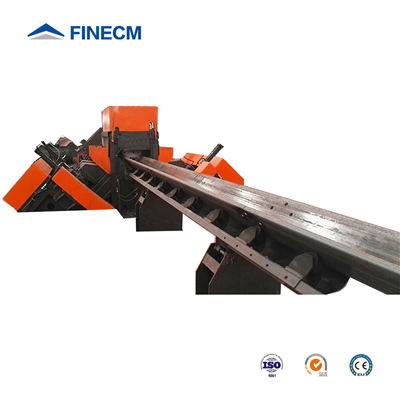

1-Infeed conveyor & Feeding carriage-Fast, Reliable & Precision

2-Transverse conveyor & Auto Loading System-High Efficiency

3-Marking Unit-Four Group Marking Characters Boxes Auto Chosen

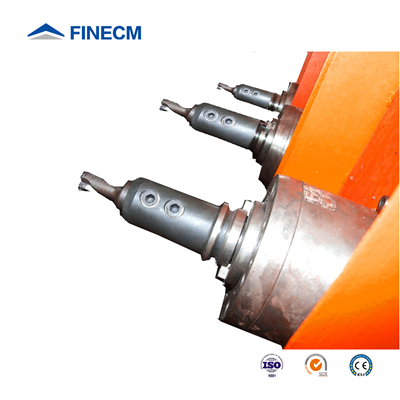

4-Drilling Unit-High Speed Carbide Drill & Three Diameters Auto Chosen & Inner Cooling

5 -Electric System- Easy Programming & Operate, Read NC1, DXF DSTV CAM Files

6-Hydraulic Unit & Cooling System-Powerful Pressure & Air Cooling System

Machine Specification:

Model	ADM2532	ADM3635	AHD3635
Min. Size/ mm	140*140*10	140*140*10	140*140*10
Max. Size/mm	250*250*32	360*360*35	360*360*35
Max. Drilling Diameter	Φ26mm	Φ40mm	Φ40mm
Drilling Spindles Per Side.	3	3	1
Drilling Tools Per Side	3	3	3
Max Rotation Speed	6000 rpm	6000rpm	6000rpm
Marking Force	1000kN	1200kN	1200kN
