APM2020
FINECM
Usage:

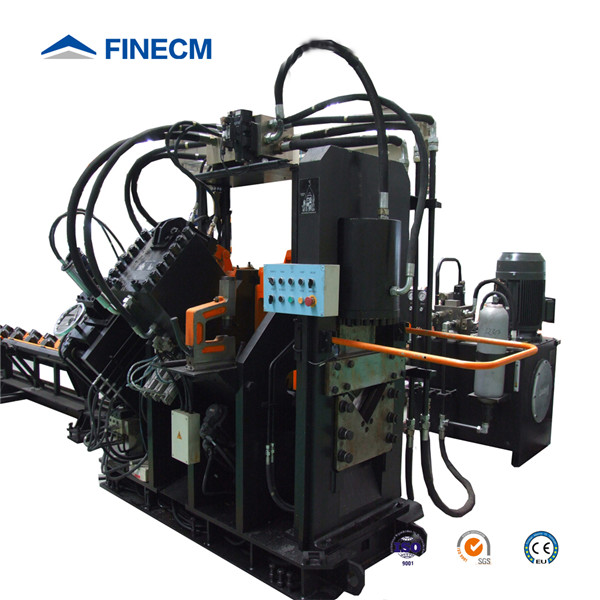

The APM series Angle Machine is a complete Processor Profiles for punching , marking and cutting Angle Profiles bars controlled by PLC and PC Programmable. The positioning, feeding of the machine are all driven by servo motors. It adopts Rack and Gear driving feeding by CNC carriage, high efficiency, and high precision; and it is wildly used in Steel Construction & Tower Industries.
Main Features:

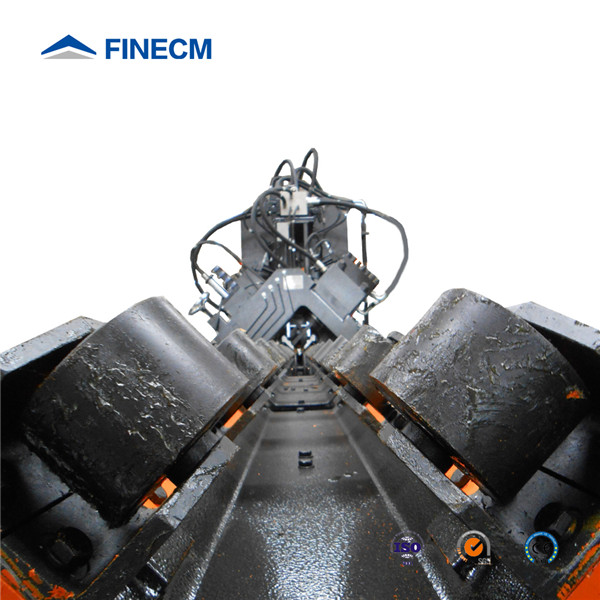

1-Infeed conveyor & Feeding carriage-Fast, Reliable & Precision

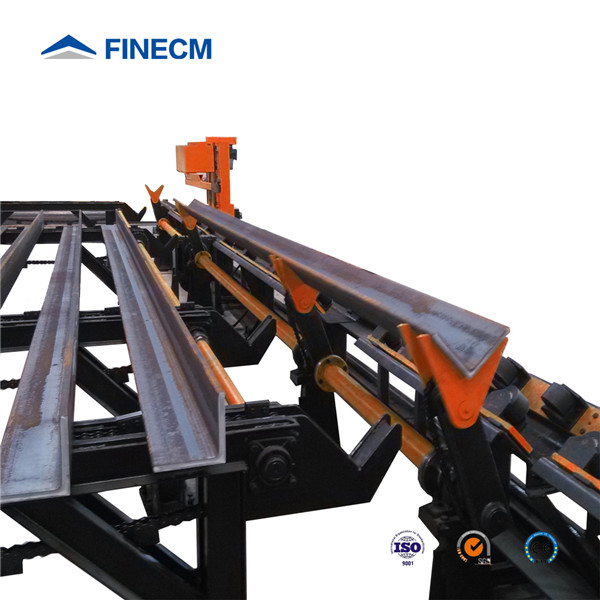

2-Transverse conveyor & Auto Loading System-High Efficiency
3-Marking Unit-Four Group Marking Characters Boxes Auto Chosen

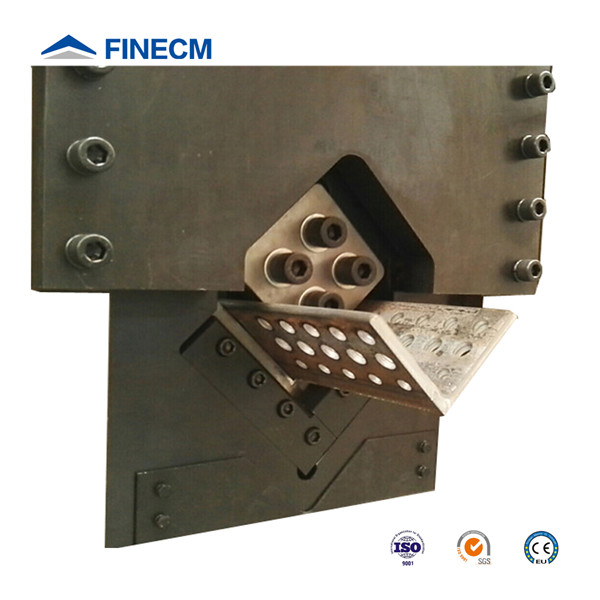

4-Punching Unit-Fast Punching Speed & Different Diameters Auto Chosen
5-Outfeed conveyor & Unloading System-Auto Unloading Workpiece
6-Electric System- Easy Programming & Operate, Read NC1, DXF DSTV CAM Files
7-Hydraulic Unit & Cooling System-Powerful Pressure & Air Cooling System
Main Specification:
Model | APM0607 | APM1010 | APM1412 | APM1616 | APM2020 | APM2020C | BL1412C | BL1412S | BL2020C |
Min. Size/ mm | 30*30*3 | 40*40*3 | 40*40*3 | 40*40*3 | 56*56*4 | 56*56*4 | 40*40*3 | 40*40*3 | 56*56*4 |
Max. Size/mm | 63*63*6 | 100*100*10 | 140*140*12 | 160*160*16 | 200*200*20 | 200*200*20 | 140*140*12 | 140*140*12 | 200*200*20 |
Max. Punch Diameter | Φ20mm | Φ25.5mm | Φ25.5mm | Φ25.5mm | Φ25.5mm | Φ25.5mm | Φ25.5mm | Φ25.5mm | Φ25.5mm |
Punches Qty. | 1 | 2 | 3 | 3 | 3 | 3 | 2 | 2 | 3 |
Punching Force | 200kN | 600kN | 950kN | 950kN | 1100kN | 1100kN | 540kN | 540kN | 950kN |
Cutting Force | 300kN | 1200kN | 1800kN | 3000kN | 1800kN | 4300kN | 700kN | 1800kN | 1540kN |
Cutting Blade Type | Single | Single | Single | Single | Double | Single | Double | Single | Double |
