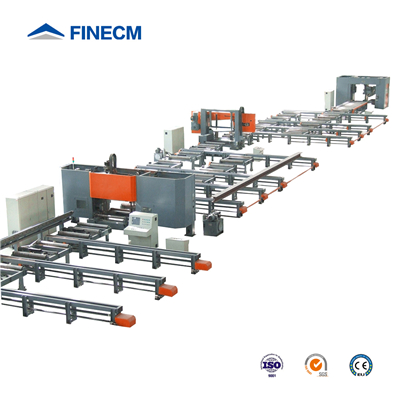

BHD1000 CNC DRILLING MACHINE FOR BEAMS

Useage:

The BHD1000 CNC Drilling Machine is a complete Processor Profiles for high speed drilling (Carbide Drill), marking and tapping on H-beams, Channels & Square Tubes controlled by SIEMENS control and PC Programmable. The spindles equip with Auto Tool-changer for each Spindle, so that can change the tool automatically. It adopts Precision Spindle, controlled by SIEMENS Control system, and in-feeding by CNC carriage, high efficiency, and high precision; and it is wildly used in Construction, Bridge and other industries. It adopts Rack and Gear driving feeding by CNC carriage, high efficiency, and high precision; and it is wildly used in Steel Construction Industry.

Main Specifications

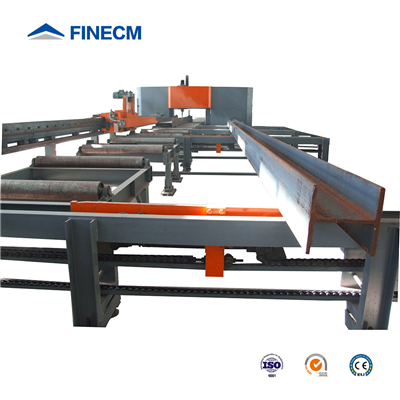

1-Infeed conveyor & Feeding Carriage-Fast, Reliable & Precision

2-Option of Transverse conveyor & Loading System-High Efficiency

3-Option of Disk Marking Unit-38 Marking Characters Auto Chosen

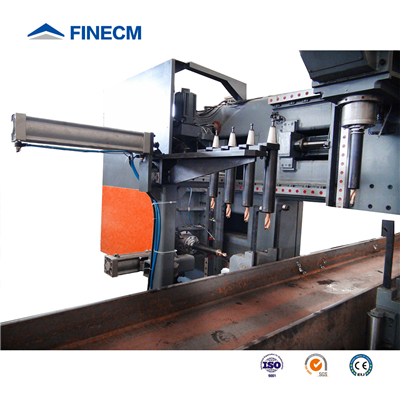

4-Drilling Unit-Precision Spindle, High Speed, Carbide Drill, Inner Cooling& Tool-changer

5-Machine Body-Strong Structure, High rigidity & High Stability

6-Electric System- CNC，Easy Programming & Operate, Read NC1, DXF DSTV CAM Files

7-Hydraulic Unit & Cooling System-Hydraulic Clamp for Beam& Air Cooling / Air Conditioner
