BS1250
FINECM
Usage

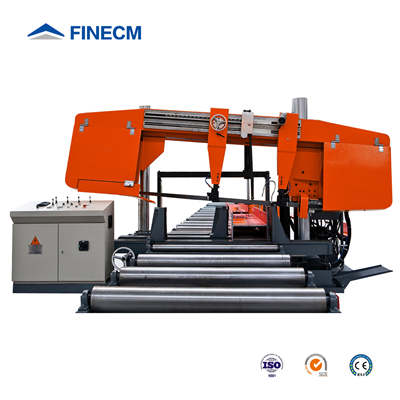

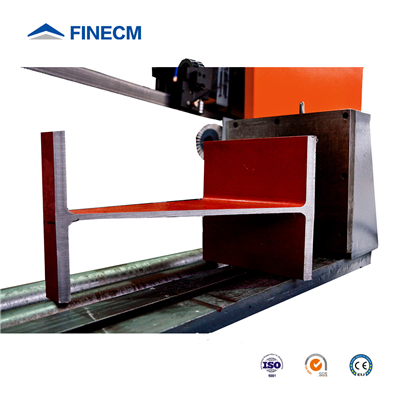

The BS1250 Band Sawing Machine is a band sawing machine for cutting H-beams, Channels & Square Tubes controlled by PLC. The positioning, feeding of the machine are all driven by rollers via motors. It is wildly used in Steel Construction Industry.
Main features

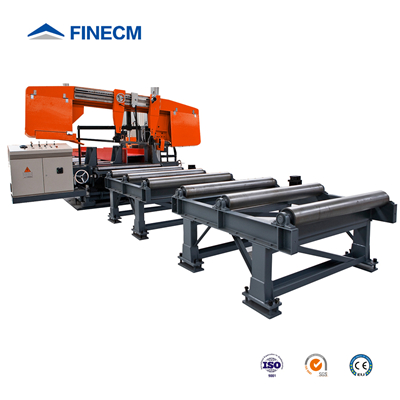

1-Infeed conveyor & Feeding-Roller Feeding, Easy Operate, Reliable
2-Option of Transverse conveyor & Loading System-High Efficiency

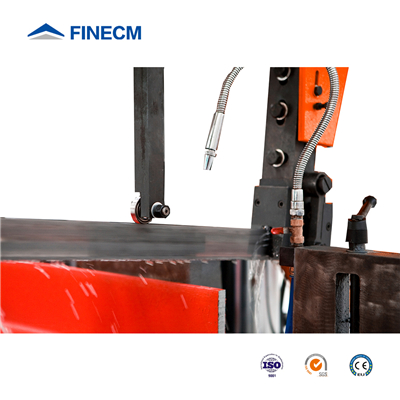

3-Laser Light-Easy Find Cutting Point
4-Sawing Frame & Worktable--Strong Structure, 0-45° Manual Positioning

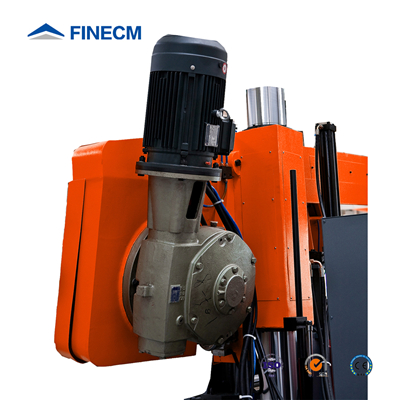

5-Sawing Spindle-Powerful Sawing Capacity & Fast Cutting Speed
6-Electric System- Easy Programming & Operate
7-Hydraulic Unit & Cooling System-Hydraulic Clamp & Air Cooling System
Model | BS750 | BS1000 | BS1250 |
Min. Size/ mm | 150-700 | 150-1000 | 150-1250 |
Max. Size/mm | 75-400mm | 75-500mm | 75-600mm |
Cutting Angle | 0-45° | 0-45° | 0-45° |
Cutting Linear Speed | 20-80m/min | ||
Spindle Power | 7.5KW | 7.5KW | 11KW |
Control System | PLC | PLC | PLC |
Feeding Type | Roller | Roller | Roller |
Usage
The BS1250 Band Sawing Machine is a band sawing machine for cutting H-beams, Channels & Square Tubes controlled by PLC. The positioning, feeding of the machine are all driven by rollers via motors. It is wildly used in Steel Construction Industry.
Main features
1-Infeed conveyor & Feeding-Roller Feeding, Easy Operate, Reliable
2-Option of Transverse conveyor & Loading System-High Efficiency
3-Laser Light-Easy Find Cutting Point
4-Sawing Frame & Worktable--Strong Structure, 0-45° Manual Positioning
5-Sawing Spindle-Powerful Sawing Capacity & Fast Cutting Speed
6-Electric System- Easy Programming & Operate
7-Hydraulic Unit & Cooling System-Hydraulic Clamp & Air Cooling System
Model | BS750 | BS1000 | BS1250 |
Min. Size/ mm | 150-700 | 150-1000 | 150-1250 |
Max. Size/mm | 75-400mm | 75-500mm | 75-600mm |
Cutting Angle | 0-45° | 0-45° | 0-45° |
Cutting Linear Speed | 20-80m/min | ||
Spindle Power | 7.5KW | 7.5KW | 11KW |
Control System | PLC | PLC | PLC |
Feeding Type | Roller | Roller | Roller |
