DJ1250C
FINECM
Usage:

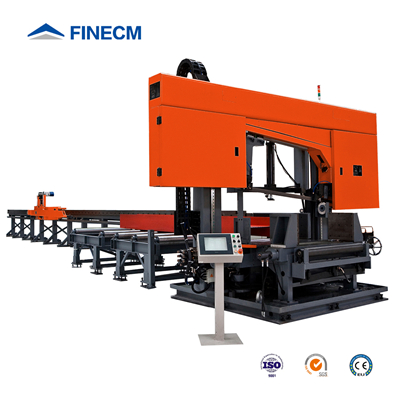

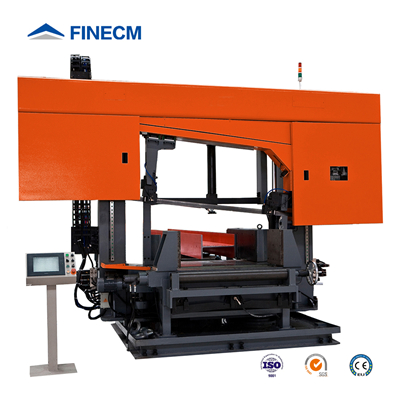

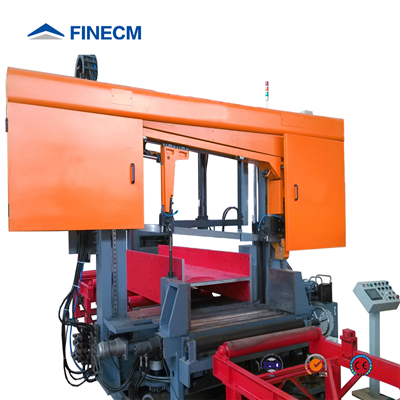

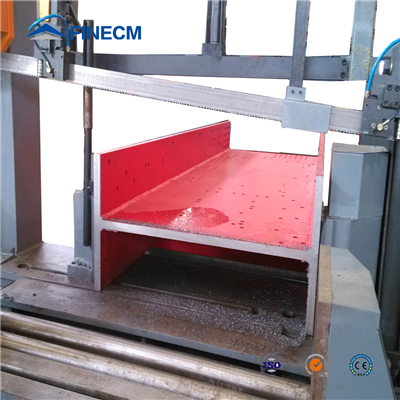

The DJ1250C CNC Band Sawing Machine is a high speed band sawing machine for cutting H-beams, Channels & Square Tubes controlled by PLC. The positioning, feeding of the machine are all driven by servo motors. It adopts Rack and Gear driving feeding by CNC carriage, high efficiency and high precision; and it is wildly used in Steel Construction Industry.
DJ SERIES CNC SAWING MACHINE FOR BEAMS
1-Infeed conveyor & Feeding Carriage-Fast, Reliable & Precision Auto Feeding
2-Option of Transverse conveyor & Loading System-High Efficiency
3-Option of Roller feeding & Laser Light Positioning

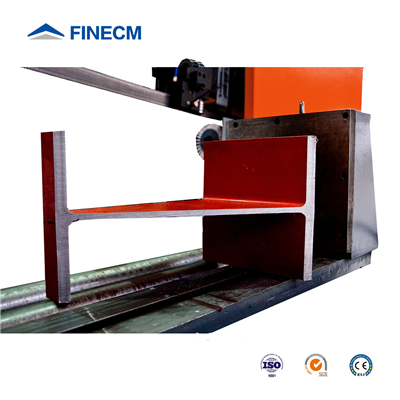

4-Sawing Frame & Worktable--Strong Structure, 0-45° Auto Positioning With High Accuracy

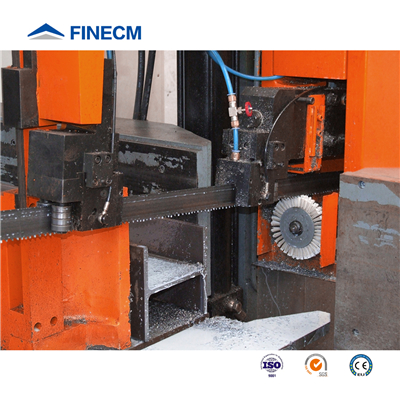

5-Sawing Spindle-Powerful Sawing Capacity & High Cutting Speed
6-Electric System- Easy Programming & Operate, Touch Screen, Real-time Monitoring
7-Hydraulic Unit & Cooling System-Hydraulic Clamp & Air Cooling System/ Air Conditioner
Model | DJ700C | DJ1000C | DJ1000 | DJ1250C | DJ1250 | DJ1250D |
Min. Size/ mm | 150-700 | 150-1000 | 150-1250 | 150-1250 | 150-1250 | 150-1250 |
Max. Size/mm | 75-400mm | 75-500mm | 75-600mm | 75-600mm | 75-600mm | 75-600mm |
Cutting Angle | 0-45° | 0-45° | 0-45° | 0-45° | 0-45° | 0-±60° |
Cutting Linear Speed | 20-100m/min | |||||
Spindle Power | 11KW | 11KW | 11KW | 15KW | 15KW | 15KW |
Control System | PLC | PLC | PLC | PLC | PLC | PLC |
Feeding Type | Carriage | Carriage | Roller | Carriage | Roller | Carriage |
