PLD2012
FINECM
Usage

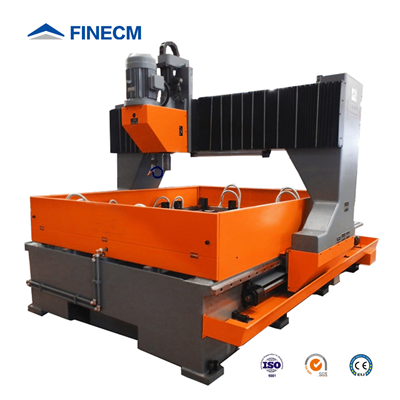

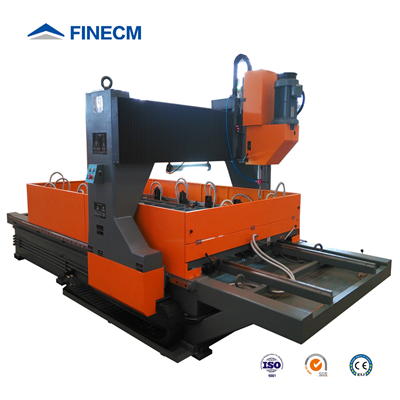

The PLD2012 Plate Drilling Machine is a drilling machine for Steel Plates controlled by PLC and PC Programmable. The positioning of the machine is driven by servo motors, high efficiency, and high precision; and it is wildly used in Steel Construction & Tower Industries.
PD & PLD SERRIES CNC DRILLING MACHINE FOR PLATES

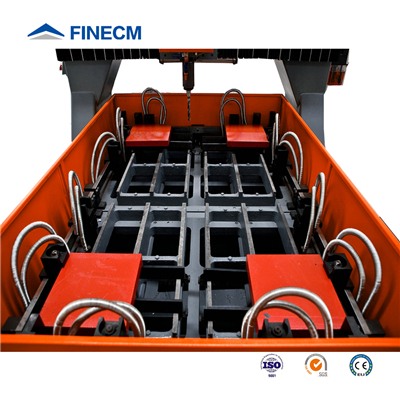

1-Worktable-Fixed Type & 12 Hydraulic Clamps& Good Rigidity
2-Gantry-Driven By 2 Servo Motors Via Linear Guide & Ball Screw

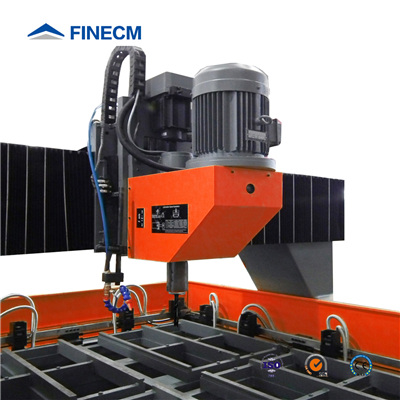

3-Drilling Unit- Spindle Hydraulic Feeding
4-Lubrication-Auto Lubrication For Linear Guide & Ball Screw
5-Electric System- Easy Programming & Operate, Read NC1, DXF DSTV CAM Files
6-Chips Cleaner-Auto Chips Remove Device & Chips Cart
7-Hydraulic Unit & Cooling System-Powerful Pressure for Clamping& Air Cooling System
Model | PD16C | PD30B | PLD2012 | PLD2016 | PLD3016 |
Max. Workpiece | 1650*1000*80 | 3000*1600*80 | 2000*1200*100 | 2000*1600*100 | 3000*1600*80 |
Thickness | 15-80mm | 15-80mm | 15-100mm | 15-100mm | 15-80mm |
Spindle Feeding | Hydraulic | Hydraulic | Servo Motor | Servo Motor | Servo Motor |
Drilling Diameter | Ф12~Ф50mm | Ф12~Ф50mm | Ф12~Ф50mm | Ф12~Ф50mm | Ф12~Ф50mm |
Rotation Speed | 120 ~ 560rpm | 120 ~ 560 rpm | 120 ~ 560 rpm | 120 ~ 560 rpm | 120 ~ 560 rpm |
Spindle Power | 5.5KW | 5.5 KW | 5.5 KW | 5.5 KW | 5.5 KW |
CNC Axis | 2 | 2 | 3 | 3 | 3 |
