PPD103B
FINECM
Usage:

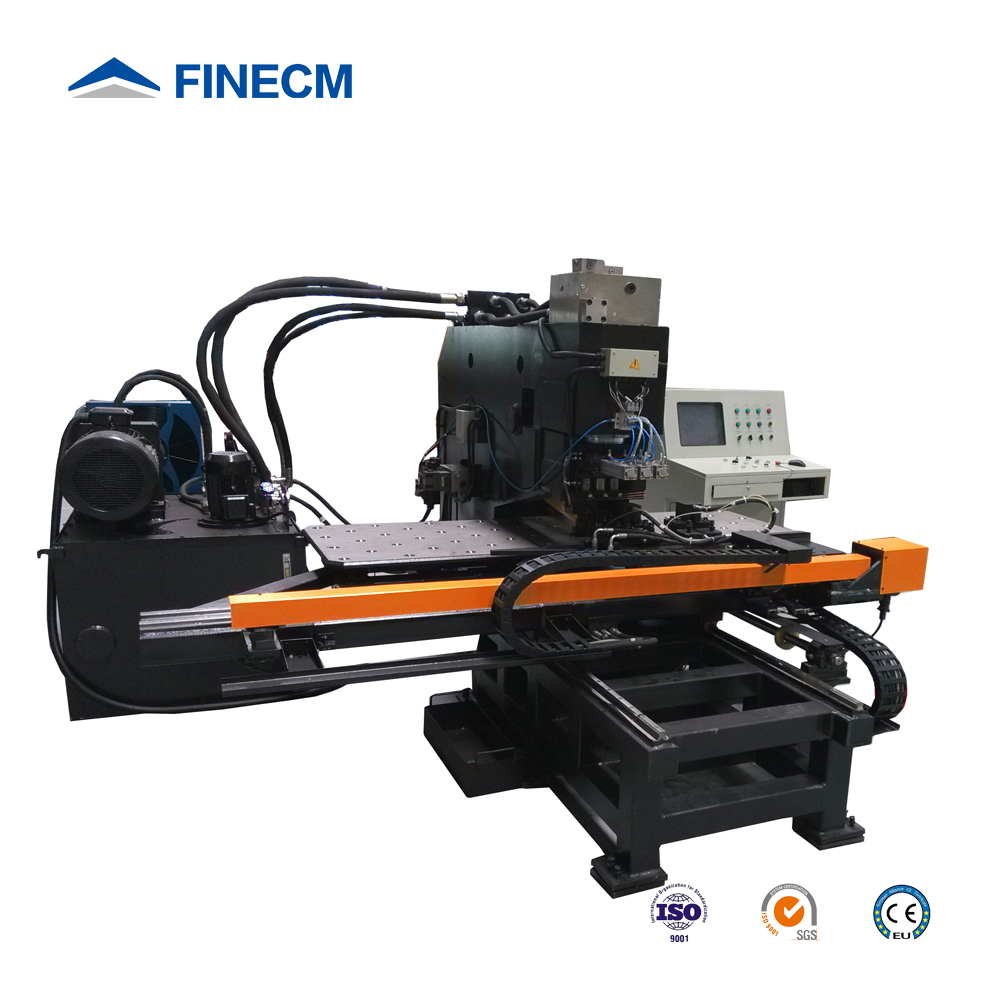

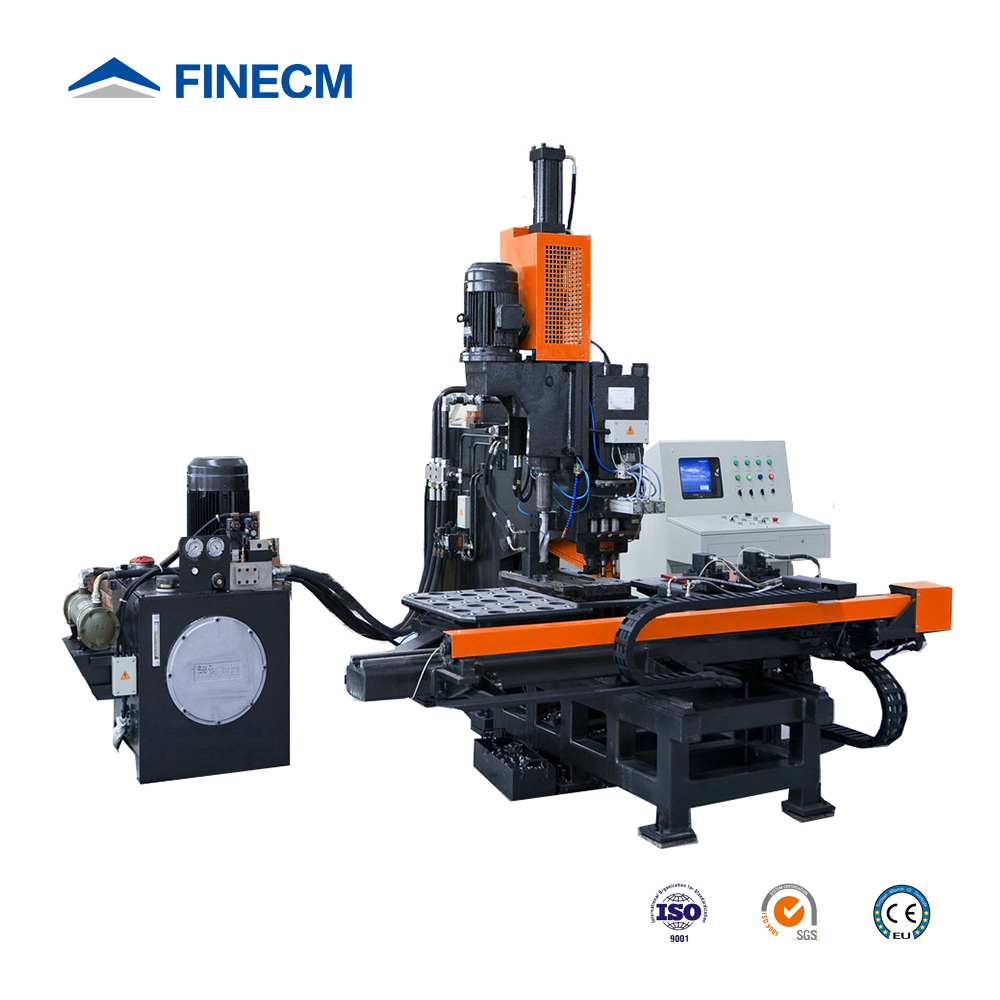

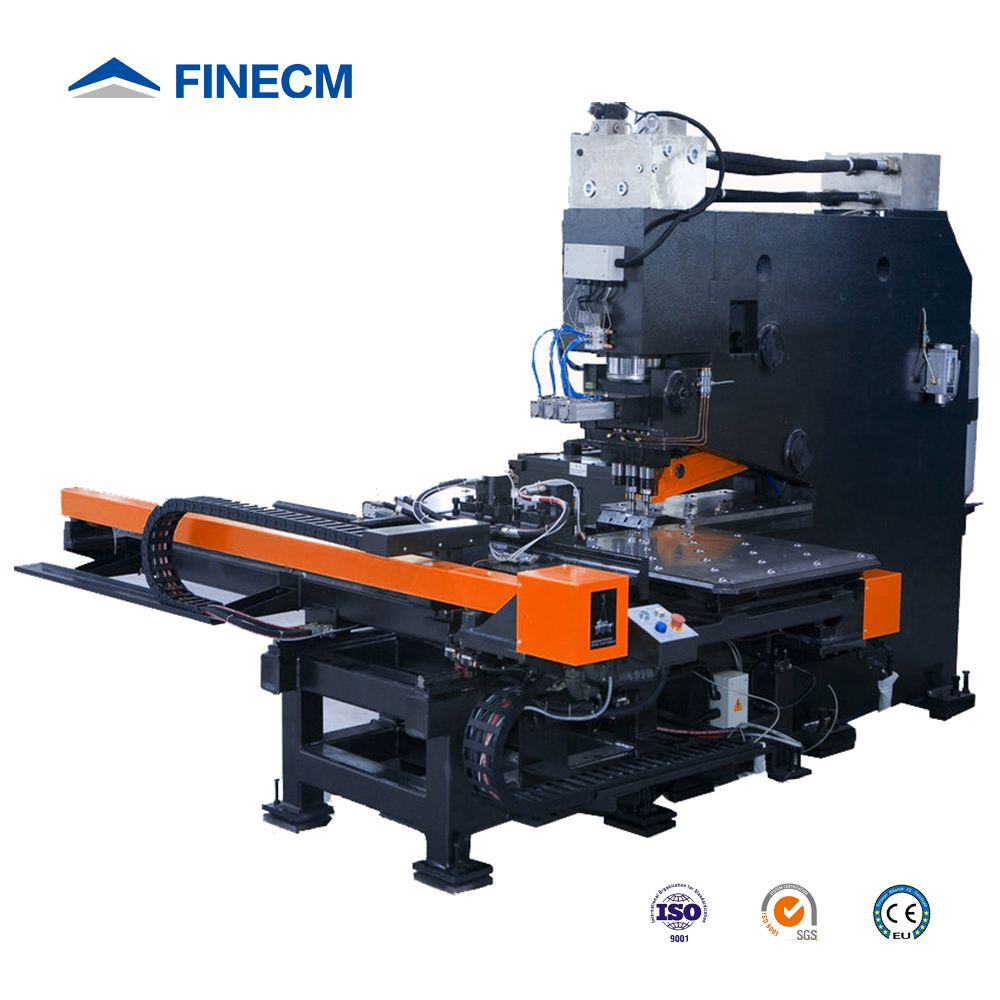

The PPD103B is a complete Processor Profiles for punching, marking and drilling for Steel Plates controlled by PLC and PC Programmable. The positioning of the machine is driven by servo motors, high efficiency, and high precision; and it is wildly used in Steel Construction & Tower Industries.
Main Features:
1-Worktable-Driven By 2 Servo Motors Via Linear Guide & Ball Screw
2-Machine Body-C Type Reliable Structure & Good Rigidity
3-Punching Unit- Fast Punching Speed & 2 Different Diameter Auto Chosen
4-Marking Unit-One Group Marking Characters & Can be Changed to Punch
5-Option Drilling Unit-High Speed Spindle 3000RPM & Carbide Drill / Twist Drill 560RPM
6-Electric System- Easy Programming & Operate, Read NC1, DXF DSTV CAM Files
7-Hydraulic Unit & Cooling System-Powerful Pressure & Water/Air Cooling System
Machine Specification:

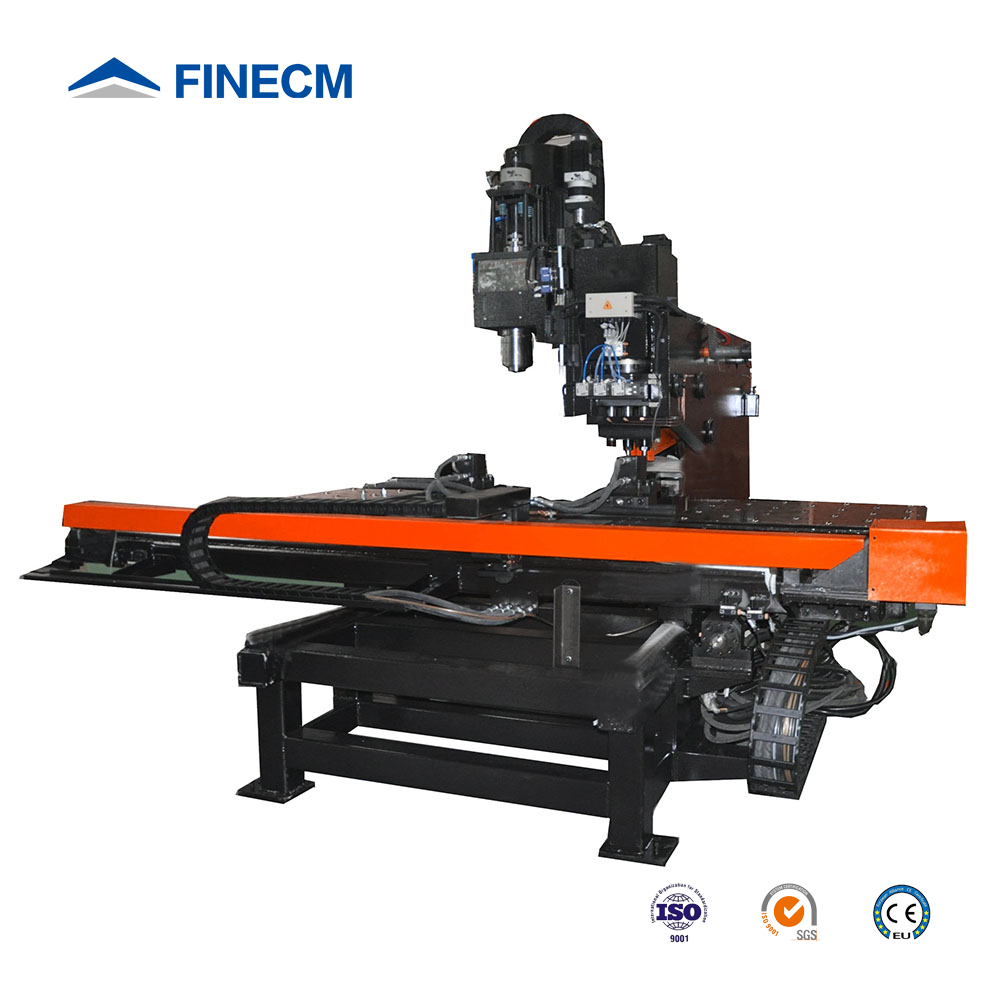

Model | PP103B | PPD103B | PP123 | PP153 | PPHD123 |
Max. Workpiece Size | 775*1500 | 775*1500 | 800*1500 | 775*1500 | 800*1500 |
Min./Max. Thickness | 5-25mm | 5-25mm | 5-25mm | 5-25mm | 5-40mm |
Max. Punching Diameter | Φ26mm | Φ26mm | Φ30mm | Φ32mm | Φ26mm |
Max. Drilling Diameter. | / | Φ50mm | / | / | Φ40mm |
Max. Rotation Speed | / | 560rpm | / | / | 3000rpm |
Punching Force | 1000kN | 1000 kN | 1200 kN | 1500 kN | 1200 kN |
Marking Characters | 10 | 10 | 16 | 10 | 16 |
Marking Force | 800kN | 800 kN | 1000 kN | 800 kN | 1000 kN |
