PPHD123
FINECM
Usage:
The PPHD123 is a complete Processor Profiles for punching, marking and drilling (High speed) for Steel Plates controlled by CNC and PC Programmable. The positioning of the machine is driven by servo motors, high efficiency, and high precision; and it is wildly used in Steel Construction & Tower Industries.

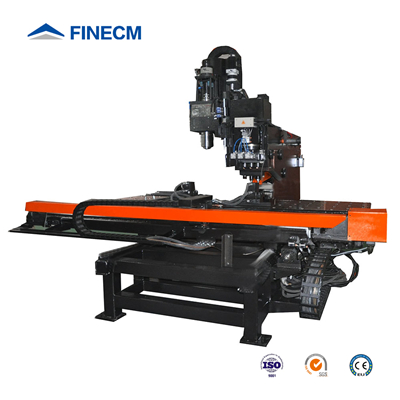

CNC HYDRAULIC PUNCHING & DRILLING MACHINE FOR PLATES
1-Worktable-Driven By 2 Servo Motors Via Linear Guide & Ball Screw

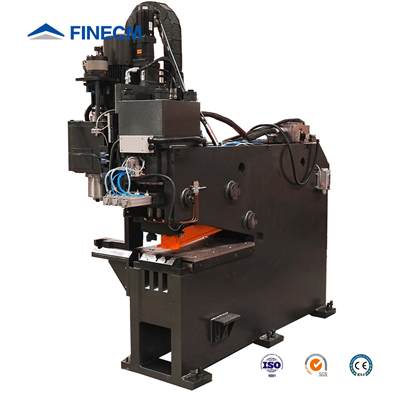

2-Machine Body-C Type Reliable Structure & Good Rigidity

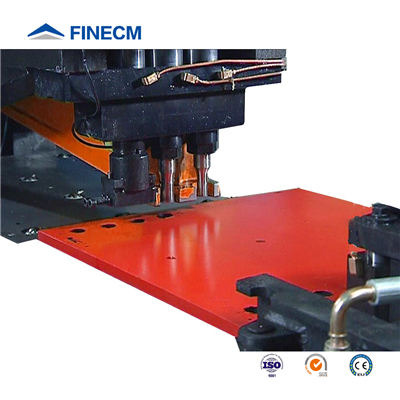

3-Punching Unit- Fast Punching Speed & 2 Different Diameter Auto Chosen
4-Marking Unit-One Group Marking Characters & Can be Changed to Punch
5-Drilling Unit-High Speed Spindle 3000RPM& Carbide Drill
6-Electric System- Easy Programming & Operate, Read NC1, DXF DSTV CAM Files
7-Hydraulic Unit & Cooling System-Powerful Pressure &Water/Air Cooling System
Model | PP103B | PPD103B | PP123 | PP153 | PPHD123 |
Max. Workpiece Size | 775*1500 | 775*1500 | 800*1500 | 775*1500 | 800*1500 |
Min./Max. Thickness | 5-25mm | 5-25mm | 5-25mm | 5-25mm | 5-40mm |
Max. Punching Diameter. | Φ26mm | Φ26mm | Φ30mm | Φ32mm | Φ26mm |
Max. Drilling Diameter | / | Φ50mm | / | / | Φ40mm |
Max. Rotation Speed | / | 560rpm | / | / | 3000rpm |
Punching Force | 1000kN | 1000 kN | 1200 kN | 1500 kN | 1200 kN |
Marking Characters | 10 | 10 | 16 | 10 | 16 |
